Steel Wire Mesh

Your Professional Steel Wire Mesh manufacturer!

Tianjin Anguyuan metal products Co., Ltd. was established in 2007 October,continuously upgrading and innovating our products through time iteration to meet customer needs.Products are widely used in industrial and civil construction, such as: High speed railway, bridge, highway, subway, tunnel, factory, ping, airport, dam, slope protection, concrete precast slab and wall, commercial buildings, stadiums, guardrail etc..Our is one of China top professional steel wire mesh manufactures.

Why Choose Us

Rich experience

Our company was established in 2007 October,have over 17 years of industry experience.Annual output capacity of 30000 tons.

Advanced equipment

Our company introduction of welding production line is the most advanced international.

Production market

Our products coverage throughout the country and exported to Europe, Australia, Southeast Asia and other regions.

Our service

We have full-time online customer service to meet customer needs

Welded Mesh Fabric
Welded wire mesh, or welded wire fabric, or "weldmesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to...
read more
Welded Steel Fabric
The concept of Welded steel fabric/ mesh was first proposed in 1901, while the first major application was in 1908. In 1922, it was tested to be the sufficiently suitable material for roads of...
read more
Welded Mesh Fabric
The concept of welded steel fabric/ mesh was first proposed in 1901, while the first major application was in 1908. In 1922, it was tested to be the sufficiently suitable material for roads of...
read more
Welded Steel Wire Mesh
The concept of welded steel fabric/ mesh was first proposed in 1901, while the first major application was in 1908. In 1922, it was tested to be the sufficiently suitable material for roads of...
read more
Welded Steel Wire Fabric
The concept of welded steel fabric/ mesh was first proposed in 1901, while the first major application was in 1908. In 1922, it was tested to be the sufficiently suitable material for roads of...
read more
Welded Wire Reinforcement Mesh
Welded reinforcement concrete mesh is one heavy type welded wire mesh products, widely used in concrete, construction and buildings.
read more
Welded Plain Wire Reinforcement
Welded wire reinforcement (construction mesh) is an efficient and economical replacement for rebar as reinforcement in concrete construction.
read more
Concrete Steel Wire Mesh
The concept of welded steel fabric/ mesh was first proposed in 1901, while the first major application was in 1908. In 1922, it was tested to be the sufficiently suitable material for roads of...
read more
Standard Steel Fabric
Welded wire mesh is constructed from rigid wires welded at every intersection to provide a very stable and uniform surface.
read more
Merchant Steel Fabric
Standard steel FabricThis reliable and robust concrete fabric mesh by ROM is ideal for security on building projects. It is a high quality steel reinforcement for cast concrete applications. It...
read more
Flying End Fabric
Steel mesh is used in beam and column floor, roof, wall, concrete pavement, bridge deck pavement, airport runway, tunnel lining, box culverts, dock floor, prefabricated components and other fields...
read more
Purpose Made Steel Fabric
Steel bar welding mesh is a network of steel bar products welded in the factory, which is longitudinal and transverse steel bars arranged at a certain distance and at right angles to each other,...
read more

First 12 Last

Advantages of steel wire mesh

Steel wire mesh (spare) material: The most material way under the same load conditions, the corresponding material can reduce the support structure.

Reducing investment of steel wire mesh: Save materials, save labor, save construction time, and avoid cleaning and maintenance.

The construction of the steel wire mesh is simple and convenient: The support to be installed is reinforced with bolts, which can be completed by one person.

Steel wire mesh saves time: The product does not need to be reprocessed on site, and the installation is very fast.　　

Steel wire mesh is durable: It is hot-dip galvanized and anti-corrosion treated before going out, and it is resistant to impact and heavy pressure.

Steel wire mesh modern style: Beautiful appearance, design standards, ventilation and light transmission, giving the overall smooth modern feeling.

Lightweight steel wire structure: Less material, light structure, and easy to hoist.

Steel mesh anti-fouling: No accumulation of rain, ice and dust.

Steel wire mesh reduces wind resistance: Due to good ventilation, wind resistance is small in case of strong wind, reducing wind damage.

Steel wire mesh design is simple: No small support beams, simple structure, simplified design.

The performance of the steel wire mesh is superior: Ventilation, lighting, heat dissipation, explosion-proof, and good slip resistance.

Application of steel wire mesh

Construction industry
Concrete reinforcement: Steel wire mesh is often embedded in concrete to provide reinforcement and enhance the structural integrity of buildings, bridges, and other concrete structures.

Masonry work: Steel wire mesh is used in masonry work to reinforce walls and prevent cracking.

Industrial and manufacturing
Filtration and sieving: Steel wire mesh is used in the manufacturing of filters and sieves for applications like water filtration, particle separation, and air filtration.

Conveyor belts: In some industrial settings, steel wire mesh is utilized in the construction of conveyor belts for material handling.

Agriculture
Animal enclosures: Used for fencing and enclosures in agriculture to create animal pens or protect crops from pests.

Bird cages: Steel wire mesh is employed in the construction of bird cages or aviaries.

Security and fencing
Perimeter fencing: Commonly used as security fencing for residential, commercial, and industrial properties.

Window and door security: Mesh screens and grilles made of steel wire offer added security for windows and doors.

Gabions and retaining walls
Gabion baskets: Steel wire mesh is filled with rocks and used in the construction of gabion baskets for erosion control, retaining walls, and landscaping.

Mining and quarrying
Screening and sizing: Steel wire mesh is employed in screens for mining and quarrying operations to sort and size materials.

Decorative applications
Architectural design: Used in architectural applications for decorative purposes, such as facades, interior design, and artistic installations.

Concrete paving
Paving applications: In some construction projects, steel wire mesh is added to concrete paving to control cracking and improve the pavement's strength.

Automotive industry
Automotive components: Steel wire mesh May be used in the manufacturing of certain automotive components, such as filters and grilles.

Oil and gas industry
Drilling mud filtration: Steel wire mesh is used in the oil and gas industry for drilling mud filtration to separate solids from drilling fluids.

Technical Parameters

STANDARD		Re YIELD STENGTH Mpa/(ksi)	Rm TENSILE STRENGTH Mpa/(ksi)	Rm/Re RATIO	ELONGATION (Reduction of area)	SHEAR STRENGTH (N/mm2)	BEND TEST


ASTM Standard Specification for Steel wire/ Steel Welded Wire Reinforcement,Plain,for Concrete	ASTM A 82M-07	Rp0.5≥485(70)	≥550(80)	≥1.05	(Z≥30%)	-	D=2d

	ASTM A185M-06≥φ3.15mm	≥450(65)	≥515(75)	≥1.05	(Z≥30%)	≥241xSmax	D=2d

BS 4482：2005 Steel Wire for the Reinforcement of Concrete	500 <8mm	≥500	≥510	≥1.02	Agt≥1.0%	-	D=4d

	500 ≥8mm	≥500	≥525	≥1.05	Agt≥2.5%

BS 4483：2005 Steel Fabric for the Reinforcement of Concrete	B500A	≥485	≤650	≥1.03 (ifd<8mm,≥1.02)	Agt≥2.5 (ifd<8mm,≥1.0)	≥125xSmax	D=4d

	B500B	≥485	≤650	≥1.03 (ifd<8mm,≥1.02)	Agt≥4.0%

	B500C	≥485	≤650	≥1.13	Agt≥6.0%

BS 4449：2005 Steel for the Reinforcement of Concrete-Weldable Reinforcing Steel	B500A	≥500	≤650	≥1.05 (ifd<8mm,≥1.02)	Agt≥2.5% (ifd<8mm,≥1.0)	≥121xSmax	if d≤16(D=4d) if d>16(D=7d)

	B500B	≥500	≤650	≥1.08	Agt≥5.0%

	B500C	≥500	≤650	≥1.15,≤1.35	Agt≥7.5%

AS/NZS 4671：2001 Steel Reinforcing Materials	500L	≥500	≤750	≥1.03	Agt≥1.5%	≥250xSmax	D=4d

	500N	≥500	≤650	≥1.08	Agt≥5.0%

	500E	≥500	≤600	≥1.15,≤1.4	Agt≥10.0%

SS 561：2010 Steel Fabric for the Reinforcement of Concrete	500A	≥485	≤650	≥1.03	Agt≥2%	≥250xSmax	D=4d

	500B	≥485	≤650	≥1.06	Agt≥4.0%

	500C	≥485	≤650	≥1.13	Agt≥6.0%

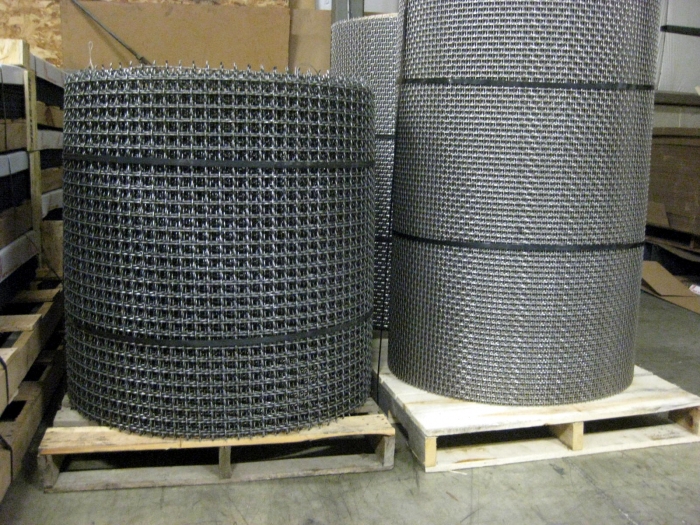

Packaging and shipping

Rolled steel wire mesh is shipped upright or "upside down". Fine wire mesh is often rolled inside a thin corrugated cardboard skin for added protection. Edge protection as well as a top cover prevents the mesh from being stacked or otherwise mishandled, and we are always available to provide custom packaging boxes if the situation requires it.

productcate-1-1

FAQ

Q: Does steel wire mesh rust?

A: Welded wire mesh is a popular construction material known for its versatility and durability. However, like any metal product, it is susceptible to rust over time.

Q: Is wire mesh stronger than rebar?

A: While both types are strong, rebar has better bend strength properties than wire mesh and provides better support to the concrete for high or heavy traffic.

Q: Is wire mesh ok for a driveway?

A: Benefits of Using Wire Mesh in Concrete Driveways：Wire mesh offers several advantages, including increased strength, ease of installation, and cost-effectiveness. It helps distribute loads evenly, reducing the risk of cracks and enhancing the overall durability of the driveway.

Q: Can you weld wire mesh?

A: In order for wire mesh components to produce the desired result, you must implement a welding technique that will provide the durability and cost-effectiveness your particular operation calls for. Spot welding is the process in which an electrical current is used to heat the material and create a bond.

Q: What is the difference between weld mesh and wire mesh?

A: Manufacturing Process:Whereas wire mesh is made by weaving, welded mesh is made by welding.

Q: Why use steel mesh?

A: Steel reinforcing mesh is a reliable material for making concrete structures more robust and reliable, as it provides reinforcement and additional strength. It is often used in the construction of roads and bridges, as well as other infrastructure, due to its lightweight nature and ease of installation.

Q: Can steel mesh be cut?

A: In fact, the finest meshes are easily cut using a pair of household scissors. At the other end of the scale, our largest wire diameter (6mm) does require an angle grinder.

Q: Can you bend steel mesh?

A: Bending steel mesh is an invaluable skill for both professionals and DIY enthusiasts. With the right tools, techniques, and safety precautions, you can manipulate steel mesh to suit a myriad of applications. As with any craft, practice enhances proficiency.

Q: How do you join steel mesh together?

A: The most common methods of joining our mesh together is using hog rings. This is a quick and easy method of joining, however it is important to ensure that the hog rings are made of stainless steel, as galvanised hog rings will corrode and break.

Q: How do I choose wire mesh?

A: Choosing the right welded wire mesh involves considering factors such as material, wire gauge, mesh size, and coating. By understanding these key elements and matching them to your specific application, you can select the best welded wire mesh for your needs.

As one of the leading steel wire mesh manufacturers and suppliers in China, we warmly welcome you to buy cheap steel wire mesh for sale here from our factory. All custom made products are with high quality and competitive price.
