Product Description

Steel mesh according to the cold-rolled steel bar, ribbed steel bar and light garden steel bar, hot rolled steel raw materials classification: his name is called a lot, according to the material grade, use, shape such as spearhead, edge, light circle, rib, thread, national shaping standards, custom requirements to be called.

Technical Parameters

STANDARD		Re YIELD STENGTH Mpa/(ksi)	Rm TENSILE STRENGTH Mpa/(ksi)	Rm/Re RATIO	ELONGATION (Reduction of area)	SHEAR STRENGTH (N/mm2)	BEND TEST


ASTM Standard Specification for Steel wire/ Steel Welded Wire Reinforcement,Plain,for Concrete	ASTM A 82M-07	Rp0.5≥485(70)	≥550(80)	≥1.05	(Z≥30%)	-	D=2d

	ASTM A185M-06≥φ3.15mm	≥450(65)	≥515(75)	≥1.05	(Z≥30%)	≥241xSmax	D=2d

BS 4482：2005 Steel Wire for the Reinforcement of Concrete	500 <8mm	≥500	≥510	≥1.02	Agt≥1.0%	-	D=4d

	500 ≥8mm	≥500	≥525	≥1.05	Agt≥2.5%

BS 4483：2005 Steel Fabric for the Reinforcement of Concrete	B500A	≥485	≤650	≥1.03 (ifd<8mm,≥1.02)	Agt≥2.5 (ifd<8mm,≥1.0)	≥125xSmax	D=4d

	B500B	≥485	≤650	≥1.03 (ifd<8mm,≥1.02)	Agt≥4.0%

	B500C	≥485	≤650	≥1.13	Agt≥6.0%

BS 4449：2005 Steel for the Reinforcement of Concrete-Weldable Reinforcing Steel	B500A	≥500	≤650	≥1.05 (ifd<8mm,≥1.02)	Agt≥2.5% (ifd<8mm,≥1.0)	≥121xSmax	if d≤16(D=4d) if d>16(D=7d)

	B500B	≥500	≤650	≥1.08	Agt≥5.0%

	B500C	≥500	≤650	≥1.15,≤1.35	Agt≥7.5%

AS/NZS 4671：2001 Steel Reinforcing Materials	500L	≥500	≤750	≥1.03	Agt≥1.5%	≥250xSmax	D=4d

	500N	≥500	≤650	≥1.08	Agt≥5.0%

	500E	≥500	≤600	≥1.15,≤1.4	Agt≥10.0%

SS 561：2010 Steel Fabric for the Reinforcement of Concrete	500A	≥485	≤650	≥1.03	Agt≥2%	≥250xSmax	D=4d

	500B	≥485	≤650	≥1.06	Agt≥4.0%

	500C	≥485	≤650	≥1.13	Agt≥6.0%

Application of steel mesh in bridge engineering

Mainly used in municipal bridge and highway bridge deck pavement, old bridge deck transformation, pier crack prevention and so on. Through thousands of domestic bridge application engineering quality acceptance shows that the use of welding mesh significantly improves the quality of bridge deck paving layer, the pass rate of protective layer thickness is more than 97%, the flatness of bridge deck is improved, the bridge deck is almost no cracks, the pavement speed is increased by more than 50%, and the bridge deck paving project cost is reduced by about 10%.

Welded mesh or prefabricated cold-rolled ribbed mesh should be used for the bridge deck paving layer, and binding steel mesh should not be used.

The diameter and spacing of the steel mesh used for bridge deck pavement should be determined according to the structure form and load grade of the bridge. The steel mesh spacing can be 100-200mm, and its diameter should be 6 l00mm.

Steel mesh vertical and horizontal should be equal spacing, welding mesh from the top of the protective layer thickness should not be less than 20mm.

product-259-194

Hot Tags: cut and bent fabric, China cut and bent fabric manufacturers, suppliers, factory, protective wire mesh, welded steel wire mesh, reinforcement fabric, purpose made steel fabric, welded steel wire fabric, iron wire mesh

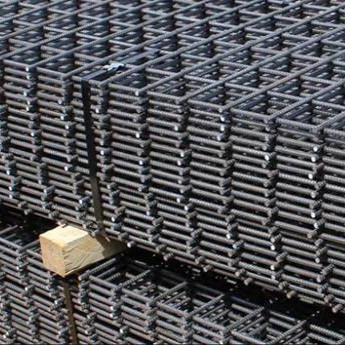

Cut and Bent Fabric
